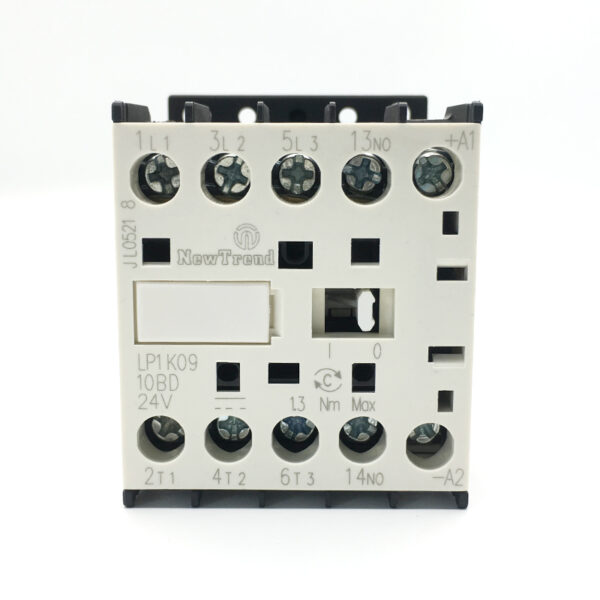

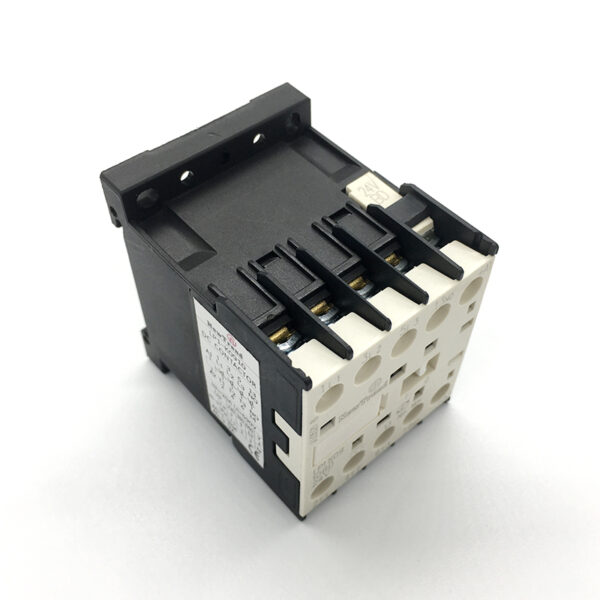

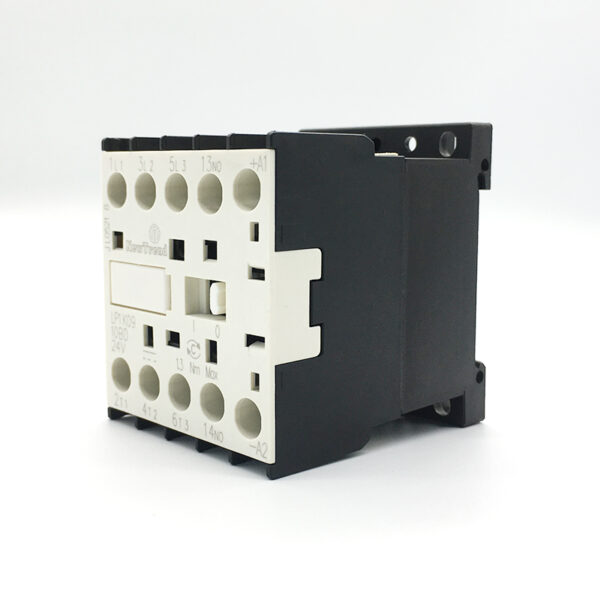

BG06 BG09 BG12 Lovato Electric alternative Micro Contactor 6A 9A 12A 20A 12V 24V 220V 230V AC DC BG0910A BG1210A Mini Contactor

Description Place of Origin : China Brand Name : OEM brand Model Number : BG06 BG09 BG12 Electricity Type : AC Number of Pole : 3 Phase : 3 Main Circuit Rating Voltage : 220V 230V Main Circuit Rating Current : 6A 9A 12A 16A type : Magnetic contactor Certificate : CE, ROHS BG06 BG09 BG12 Lovato Electric alternative Micro Contactor 6A 9A 12A 20A 12V 24V 220V 230V AC DC BG0910A BG1210A Mini Contactor   BG series is a complete range of compact mini style contactors and reversing contactors with common options available for ratings 6A, 9A, 12A, and 16 A. The offer includes a variety of different terminal connection choices and a wide range of coil voltage options. Compliance with standards: IEC 60947, VDE 0660, BS 5424, CE, etc. Available control circuits: AC, DC Applications: 2.2 kW, 4.5 kW, 5.5 kW in AC3 and AC4 Terminal connection types include: – Screw clamp – Faston connectors – Spring terminals – Pins for printed circuit boards 1 NO or 1NC contact embedded Available for 1 way motors, 2 way motors (reversing Contactors) and Star Delta pre- wired version Includes full range of control relays in the same design Possibility to extend the amount of auxiliary contacts thanks to additional auxiliary contact blocks Possibility to protect the motor thanks to additional thermal relays LR2K Model Number BG06 BG09 BG12 BG16 BGP06 BGP09 BGP12 B16 Rated operational current (AC-3, 380V) 6A 9A 12A 16A 6A 9A 12A 16A Rated operational current (AC-3, 660V) 5A 7.5A 10A 12A 5A 7.5A 10A 12A Coil voltage (Control circuit voltage)  AC 12V 24V 48V 110V 220V 230V 240V 380V 415V DC 12V 24V 48V 100V 110V 220V 230V 240V 250V Rated operational voltage 380V, 660V Rated insulation voltage 690V Main and auxiliary contacts 3P NO, 3P NC, 2NO 2NC Motor power (AC-3, 220/240V) 1.5KW 2.2KW 3KW 3KW 1.5KW 2.2KW 3KW 3KW Motor power (AC-3, 380/415V) 2.2KW 4KW 5.5KW 7.5KW 2.2KW 4KW 5.5KW 7.5KW Motor power (AC-3, 440V) 3KW 4KW 5.5KW 7.5KW 3KW 4KW 5.5KW 7.5KW Motor power (AC-3, 500/660/690V) 3KW 4KW 4KW 4KW 3KW 4KW 4KW 4KW Mouting type DIN Rail / PCB Solder Pin / Plate Coil Pull-In Voltage 0.85-1.1 Us Coil Drop-Out Voltage 0.2-0.75 Us ≤0.2 Us Coil power Pull-In 40VA, Maintain 4VA Coil power consumption 1.2W Coil Pull-In time 6-18 ms Coil Drop-Out time 5-12 ms Electrical life 500 thousand times Mechanical life 100 thousand times Ambient air temperature -5…40 °C Operating altitude 2000 m without derating in temperature     Standard control coil voltage CODE:  LC1K (AC voltage coil) Volts (50/60Hz) 12 20 24 36 42 48 110 115 120 127 200/ 208 220/ 230 230 230/ 240 256 277 380/ 400 Code J7 Z7 B7 C7 D7 E7 F7 FE7 G7 FC7 L7 M7 P7 U7 W7 UE7 Q7 Volts (50/60Hz) 400 400/ 415 440 480 500 575 600 660/ 690                   Code V7 N7 R7 T7 S7 SC7 X7 Y7                   LP1K (DC voltage coil)       Volts 12 20 24 36 48 60 72 100 110 125 155 174 200 220 230 240 250 Code JD ZD BD CD ED ND SD KD FD GD PD QD LD MD MPD MUD UD   Example of complete model number: LP1K09105BD:      LP1K means DC coil contactor, LC1K means AC coil contactor   09 means AC-3 9A rated current   10 means NO auxiliary contact, 01 means NC auxiliary contact   5 means PCB Solder Pin type, without 5 means regular DIN Rail type   BD means the coil voltage code   Dimension for DIN Rail mounting:   Dimension for Plate mounting:   Dimension for PCB Solder Pin mounting:
